Mikrotik S-GPON-ONU Compatible GPON SFP ONU B+ Transceiver ( SFPONU 1310nm_TX/1490nm_RX, SC UPC, 20km DDM)

Description Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

This Mikrotik S-GPON-ONU compatible SFPONU transceiver is designed for low cost P2MP FTTx applications. It can fully support the Class B+ ODN application specified by the ITU-T G.984.2 standard and ITU-T G.984.2 Amendent-2006.

The transmitter section uses a DFB laser diode and is fully compliant with IEC60825 and CDRH class 1 eye safety. It contains APC functions, a temperature compensation circuit to ensure compliance with G.984.2 requirement at operating temperature, data inputs and AC or DC coupling circuit.

The receiver section uses a hermetic packaged APD-TIA (APD with trans-impedance amplifier) and a limiting amplifier. The APD converts optical power into electrical current and the current is transformed to voltage by the trans-impedance amplifier. The differential DATA and DATA CML data signals are produced by the limiting amplifier. The APD-TIA is AC coupled to the limiting amplifier through a low pass filter.

This Mikrotik compatible SFPONU transceiver is programmed and tested in it's intended application with identical functionality to the original Mikrotik S-GPON-ONU transceiver.

Specification Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

Ordering Information Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

Features Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

• Hot pluggable Mikrotik SFPONU transceiver
• Functionally identical to original Mikrotik S-GPON-ONU
• Support ITU-T 984.2/984.5 GPON Networks applications
• Single fiber bi-directional data links with asymmetric 1.244Gbps TX and 2.488Gbps RX
• 1310nm burst-mode transmitter with DFB laser,1490nm continuous-mode receiver with APD-TIA
• 2-wire interface for integrated digital diagnostic Monitoring
• Transmitter state indication (TX_SD)
• SFP package with SC/UPC receptacle optical interface
• Single +3.3V power supply
• Class I laser safety standard IEC-60825 compliant
• RoHS6 Compliant

Application Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

• Gigabit Passive Optical Networks (GPON)
• FTTX

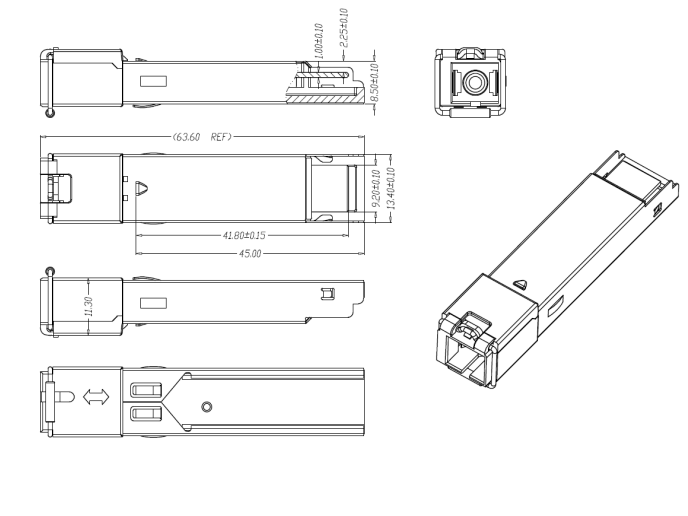

Mechanical Outline Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
