1000BASE-CWDM SFP 1270~1610nm Transceiver SMF 20km For Cisco CWDM-SFP-xxxx-20

Description Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

The Cisco CWDM-SFP-xxxx-20 compatible transceiver is high performance and cost-effective CWDM(Coarse Wavelength-Division Multiplexing) SFP module for 1000BASE Gigabit Ethernet and 1G Fiber Channel application, providing 1Gb/s throughput up to 20km link lengths over single-mode fiber (SMF) via an LC duplex connector.

There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.

This Cisco 1000BASE CWDM SFP transceiver delivers excellent performance and durability, and is an ideal equivalent to the Cisco CWDM-SFP-xxxx-20 transceiver but with a lower price and guaranteed quality, enabling it to work with Cisco SFP ports networking equipment.

Specification Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

Ordering Information Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

Features Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

• Hot-pluggable 1000BASE-CWDM Cisco compatible transceiver
• Functionally identical to Cisco CWDM-SFP-xxxx-20
• Up to 120km on 9/125µm SMF
• 18-Wavelength CWDM 1270n~1610nm available
• CWDM DFB laser transmitter
• Single 3.3V power supply
• Built-in digital diagnostic via 2-wire interface
• Low power dissipation <1W typically
• Metal enclosure provides lower EMI
• Case operating temperature range:

Commercial: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• Compliant with RoHS and lead-free

Application Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

• 1G Fiber Channel, Switch to Switch Interface
• Gigabit Ethernet
• WDM systems
• Switched backplane applications
• Router/Server interface
• Other optical networking

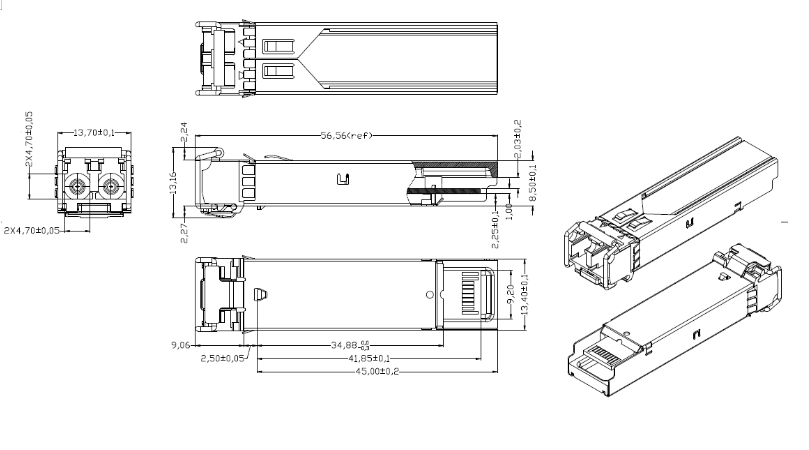

Package Outline Of Cisco CWDM-SFP-xxxx-20 compatible transceiver

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

1. Competitive prices.

2. High-quality products and services.

3. wide compatibility such as Cisco, Juniper, HP, Huawei, Alcatel, H3C and more.

4. Big capability of manufacture for 40K~100K pcs per month.

5. Independent R&D ability.

6. Keep stock, Fast delivery

Q: What is the operating temperature range of optical modules?

Commercial temperature range (COM): 0 to 70°C(32 to 158°F)

Extended temperature range (EXT): -20 to 85°C(23 to 185°F)

Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q: What is the standard warranty time for your products?

All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,

This limited warranty is applicable solely to the original purchaser and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products in accordance with their written specifications.

Three-Year (3-yr) Warranty Examination, repair and replacement parts are provided free.
