    1.5G CATV WDM BOSA LC SC ST FC APC Pigtail TX 1550nm RX 1310nm

    Ask Lasest Price
    Brand Name : GIGAOPTO
    Model Number : BOSA-T1550DFB-R1310PIN-1.5G-SCUPC-REC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500kpcs per month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    1.5G CATV WDM BOSA LC SC ST FC APC Pigtail TX 1550nm RX 1310nm

    1.5G CATV WDM BOSA LC receptacle SC ST FC APC Pigtail TX 1550nm RX 1310nm


    Features:


    • Coaxial Package
    • InGaAsP/InP MQW-DFB Laser Diode
    • Low threshold, high slope efficiency and high output power
    • Operating Case Temperature: -40℃ to +85℃
    • Single-mode fiber pigtailed with SC FC ST or LC connector
    • High channel isolation
    • Low return loss
    • Optical with Isolator

    Applications:


    • Long distance digital transmission system
    • Cable television system
    • WDM systems

    Absolute Maximum Ratings


    ParameterSymbolRatingsUnit
    Storage TemperatureTstg-40~+85
    Operating Case TemperatureTop-40~+85
    Operation Relative Humidity85%
    Forward Current (LD)IFD150mA
    Monitor PD Reverse Voltage (LD)VrL2V
    Monitor PD Reverse Voltage (PD)VrP20V
    Monitor PD Reverse Current (PD)IrP2mA
    PD Forward CurrentIFD10mA
    PD Reverse VoltageVpd50V
    Soldering Temperature (<10s)Stemp260

    Electrical and Optical Characteristics – Transmitter

    (If=Ith+20mA, Pf=1mW, SMF (9.5/125µm), Tc=+25+/-2°C, unless otherwise noted.)


    ParameterSymbolConditionMin.Typ.Max.Unit
    Threshold CurrentIthCW815mA
    Output Power (After coupled)PfCW, If=Ith+20mA0.512mW
    Operating VoltageVfCW, Tc=-40~+85℃1.6V
    Slope EfficiencySeCW, Average0.0250.050.1mW/mA
    Peak WavelengthλpCW153015501570nm
    Rise and Fall Timetr,tf

    Ib=Ith, PL=1.5mW,

    20~80%

    0.15ns
    Monitor Current (PD)ImCW,PL=1.5mW,VRD=1V100200uA
    Dark Current (PD)IdVRD=5V10nA
    Capacitance (PD)CtVRD=10V, f=1MHz1020pF
    Connector Repeatability-11dB
    Wavelength Isolation15dB

    Optical Isolation

    Single Stage30

    dB

    Dual Stage40

    Electrical / Optical Specifications – Receiver


    ParameterSymbolTest ConditionMin.Typ.Max.Unit
    Detection Wavelength Rangeλ-12601575nm
    Active DiameterDA-75μm

    Responsivity


    R

    VR=-5V@1310nm0.80A/W
    VR=-5V@1550nm0.85A/W
    Return LossRL-50dB
    Dark CurrentIdVR = 5V0.11nA
    CapacitanceCpVR = 5V0.60.7pF
    BandwidthBWVR=5V2GHz

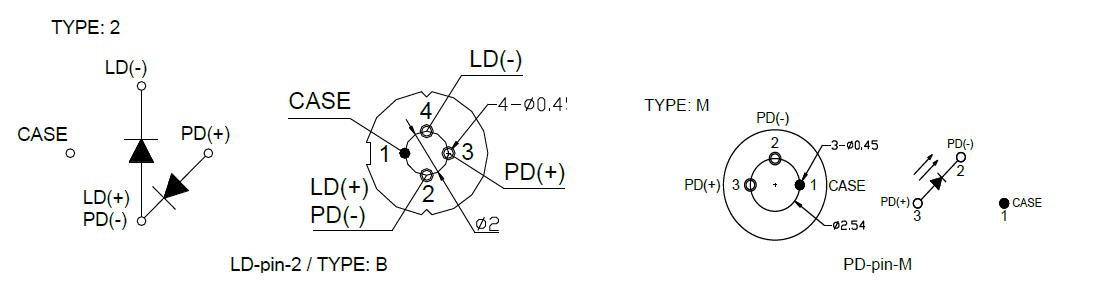

    Pin Assignment

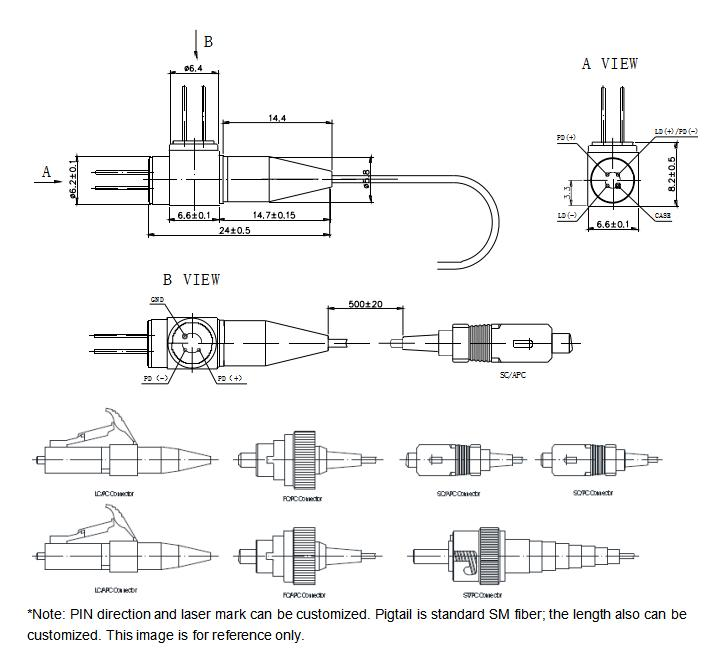

    Package Dimension
