    NON MSA 12G SDI Video SFP Receiver 1310nm 10km LC For 12G 6G 3G HD SD-SD

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-LXX9A-10DCRN
    Certification : CE,FCC,RoHs, TUV,UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    NON MSA 12G SDI Video SFP Receiver 1310nm 10km LC For 12G 6G 3G HD SD-SD

    12Gb/s Non-MSA 1310nm 10km DOM LC SMF Single Receiver Video Pathological Patterns Transceiver Module for SD/HD/3G/6G/12G SDI


    Functional Specification

    Part NumberGTS-LXX9A-10DCRNData Rate50Mb/s~11.88Gb/s
    Module TypeSFP+ Single ReceiverMSA/Non-MSANon MSA
    PackageSFP+Commercial Temperature0 to 70°C (32 to 158°F)
    Center Wavelength1310nmFiber Transmission10km
    InterfaceSimplex LCCable TypeSingle-mode fiber
    Transmitter ComponentN/AReceiver TypePIN
    Power Supply Voltage3.3VSupply Current150mA
    Rx Sensitivity@ 11.88Gbps<-11dBmRx Sensitivity@ 5.94Gbps<-13dBm
    Rx Sensitivity@ 2.97Gbps<-15dBmReceiver Overload>1.0dBm
    DDMIYesWarranty Time3 years
    OEM/ODMSupportedUnit Weight0.025kg
    ProtocolsST 259, ST 292-1, ST 424, ST-2081 and ST-2082



    Products Description

    This 12G-SDI SFP+ Rx single-receiver optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF), receiving a single lane of 12G-SDI video signals.
    The Receiver is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
    The Receiver includes these sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA),Reclocker , and a MCU controller. Each video transceiver is RoHS compliant.


    Features

    • SMPTE ST-292, ST-297, ST2081 and ST-2082 Compatible
    • Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video pathological formats
    • Operating data rate up to 11.88Gbps
    • Distance up to 10km in 4K UHD
    • Single channel receiver with LC connector Interface
    • Hot Pluggable SFP+
    • Compliant with SFP+ MSA Specification
    • Operating case temperature: 0 to +70°C
    • RoHS-6 compliant and Lead-Free


    Application

    • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
    • UHDTV/HDTV/SDTV Service Interfaces

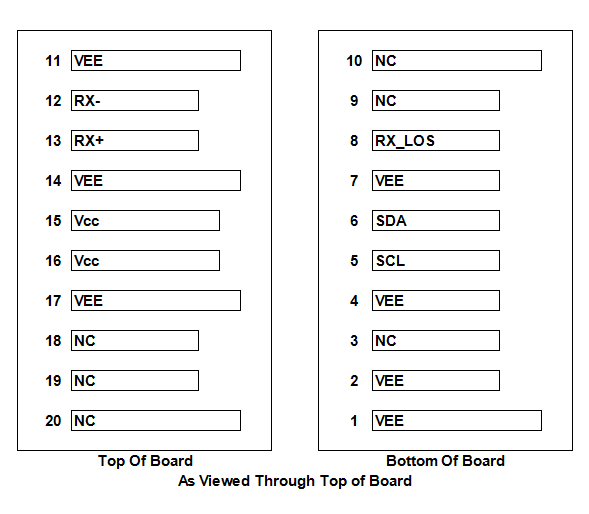

    PIN Definition
