    12G SDI CWDM Transmitter SFP+ Tx 1270~1450nm DFB Transmitter 20KM LC DOM MSA Pinout

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-C359A-20DCT
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    12G SDI CWDM Transmitter SFP+ Tx 1270~1450nm DFB Transmitter 20KM LC DOM MSA Pinout

    12G-SDI SFP Single-Transmitter Module 1270~1450nm CWDM 20km Single LC SMF MSA Pinout


    Functional Specification


    Product Name12G-SDI CWDMData Rate (Gbps)50Mbps~11.88Gbps
    Module TypeTransmitter (1-Port TX)MSA/Non-MSAMSA
    Form FactorSFP+Operating Temperature0 to 70°C (32 to 158°F)
    WavelengthCWDM 1270~1450nmMax Distance20km
    ConnectorLC SimplexPathological PatternsSupported
    Laser TypeCWDM DFBFiber TypeSMF
    Supply Voltage3.3VReceiver TypeNone
    TX Power-1~ +2dBmSupply Current160mA (Typ.)
    OEM/ODMSupportedWarranty3-year
    ProtocolsSMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI).
    ComplianceSFP MSA,RoHS

    Products Description of 12G-SDI CWDM 1270nm~1450nm SFP+ Tx MSA Pinout Series


    Gigaopto’s GTS-Cxx9A-20DCT series is a single CWDM channel single mode transmitter module designed to transmit optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 11.8Gbps and max link up to 20km over SMF fiber via CWDM wavelength channel from 1270nm to 1450nm.

    The transmitter is compliant with SFP Multi-Source Agreement (MSA) and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.


    Features


    • SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI Compatible
    • Dara rate up to 11.88 Gb/s
    • Distance up to 20km for 12G-SDI
    • Reclocker built-in
    • Support Video Pathological Patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI: 1270 nm to 1330 nm
    • Single CWDM Transmitter: 1270 nm to 1470 nm, without Receiver
    • Based on Industry Standard SFP +
    • SFF-8472 Digital Diagnostic Function
    • Single 3.3V power supply
    • Operating Temperature: 0 to +70°C
    • Hot-Pluggable
    • RoHS Compliant
    • Class 1 Laser International Safety Standard IEC-60825 Compliant

    Ordering Information


    Part NumberDescriptionCWDM ChannelMax ReachClasp Color Code
    GTS-C279A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1270nm / -C2720kmLight Purple
    GTS-C299A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1290nm/ -C2920kmSky Blue
    GTS-C319A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1310nm/ -C3120kmYellow Green
    GTS-C339A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1330nm/ -C3320kmYellow Ocher
    GTS-C359A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1350nm/ -C3520kmPink
    GTS-C379A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1370nm/ -C3720kmBeige
    GTS-C399A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1390nm/ -C3920kmWhite
    GTS-C419A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1410nm/ -C4120kmSilver
    GTS-C439A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1430nm/ -C4320kmBlack
    GTS-C459A-20DCT12G-SDI SFP+ CWDM Single-Transmitter Modules MSA1450nm/ -C4520kmYellow Orange

    Applications


    • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
    • UHDTV/HDTV/SDTV Service Interfaces

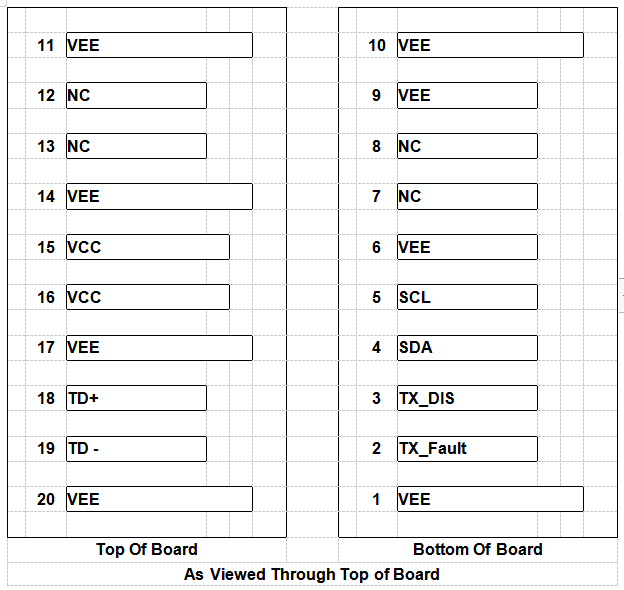

    PIN Definition
