    3G-SDI 1-Fiber BiDi Dual Transmitters 1310nm/1550nm 10km Video Pathological Patterns Module Non MSA Pinout

    3Gbps Bidirectional 1310nm/1550nm dual transmitters digital video/audio sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM


    Functional Specification


    Product Name1 Fiber BiDi Dual TransmittersP/N (Part No.)GTS-B3530-10DCTT
    Bit-Rate (Gbps)50Mb/s- 2.97Gb/sPin AssignmentNon-MSA Pinout
    Module TypeDual TransmittersOperating Temperature0 to 70°C / -20 to 85°C
    Center Wavelength (TX)TX_1 1310nm/TX_2 1550nmMax Fiber Length10km
    Optical ConnectorSimplex LC receptacleMediaSMF
    Transmitter TypeDFB BiDiReceiver ComponentN/A
    Power Supply Voltage3.3VSupply Current (Max)300mA
    Tx_1 1310nm Output Power-5~0dBmExtinction Ratio>5dB
    Tx_2 1550nm Output Power-8~-3dBmWarranty Time3 years
    Video Pathological Patterns SupportYesOEM/ODMYes
    ProtocolsSFP MSA ,SFF-8472,RoHS,CE,FCC
    ApplicationSD/HD/3G SDI

    Part NumberSDIData RateMax Link Distance
    GTS-B3530-10DCTT3G-SDI2.97Gbps10km
    HD-SDI1.485Gbps21km
    SD-SDI270Mbps30km

    Description


    The GTS-B3530-10DCTT is a 1-fibre Bi-Directional dual channel transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006. It supports the data rates from 50Mb/s to 2.97Gb/s.This dual transmitter module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

    It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 1310 nm and 1550 nm laser transmitters. Each transmitter can transmit signal from 50 Mb/s to 2.97Gb/s with up to 30 km of single-mode fiber when using the GTS-B3530-10DCRR as the receiver. A maximum distance of 10 km is achievable with 3Gb/s pathological signals.


    Features


    • SD/HD/3G-SDI SFP Transceiver
    • SMPTE 297-2006 Compatible
    • 1-Fibre BIDI Dual Transmitters with Simplex LC
    • Bandwidth from 50 Mb/s to 2.97 Gb/s
    • Optical Link up to 10km for 3G-SDI
    • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
    • BiDI DFB Dual Transmitters 1310nm-TX_1 and 1550nm-TX_2
    • Hot-pluggable SFP footprint
    • Two Independent TTL Laser Disable Input
    • Digital Diagnostic functions available through the I2C interface
    • +3.3V single power supply
    • Low Power Consumption
    • Commercial operating case temperature range: 0℃ to 70℃
    • RoHS compliant and Lead-Free

    Application


    • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
    • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
    • HD Camera or Monitor System
    • High-density digital video routers & switches

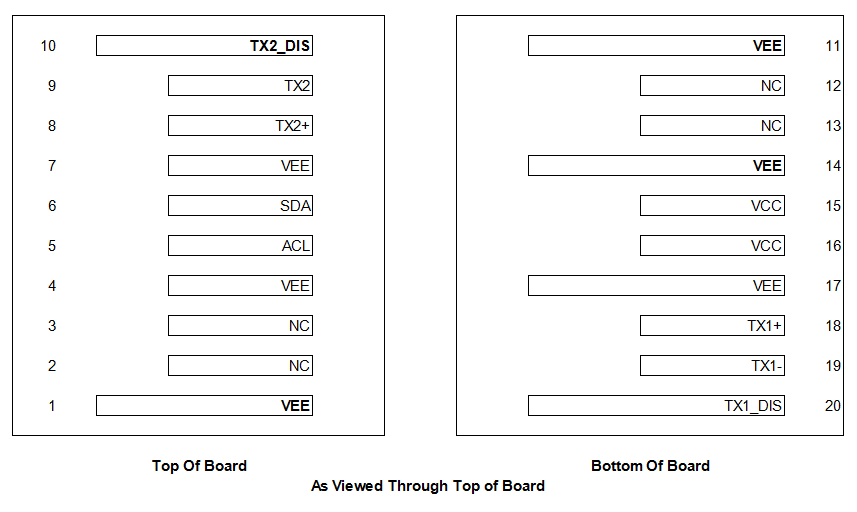

    PIN Definition
