    6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-B3560-10DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA

    6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA


    Products Description


    Gigaopto’s GTS-B3560-10DC is one fiber Bidirectional SFP optical transceiver module designed for video transmission applications.

    The transceiver is designed to transmit/receive data rates from 50Mbps to 5.94Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rate,a maximum distance of 10 km is achievable with 6Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector.

    The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.


    Functional Specification


    Product6G Video BiDi SFPPart NumberGTS-B3560-10DC
    Max Data Rate5.94Gb/sMSA PinoutYes
    Module-TypeTransmitter + ReceiverOperating Temp.0°C to 70°C /-40°C to +85°C
    Center Wavelength1310nm-TX/1550nm-RXFiber Transmission10km
    Interface /PolishSimplex LC UPCFiber TypeSMF G.652
    Transmitter TypeDFB BiDiReceiver TypePIN
    Power Supply Voltage3.3VTotal Current (Typical)200mA
    TX Optical Power-6~+1dBmReceive Sensitivity< -14dB (PRBS 223-1, BER=1E-12 )
    Extinction Ratio>7.0dBDigital DiagnosticsYes
    Video Pathological PatternsSupport as defaultWeight0.025kg
    ApplicationSD/HD/3G/6G SDI

    Features


    • Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
    • Operating data rate from 50Mbps to 5.94Gbps
    • Metal house, low EMI
    • 1310nm-TX DFB Transmitter and 1550nm-RX PIN photo-detector
    • Fiber distance up to 10km with LC duplex connector
    • Single 3.3V Power supply
    • Hot Pluggable, low power consumption
    • Compliant with SFP MSA and SFF-8472
    • Real time digital diagnostic monitoring through the I2C interface
    • Operating case temperature:

    0°C to +70°C

    -40°C to +85°C

    • RoHS-6 compliant and Lead-Free

    Applications


    • Camera, Video, Security Monitoring, etc
    • 4K /HDTV/SDTV Service Interfaces

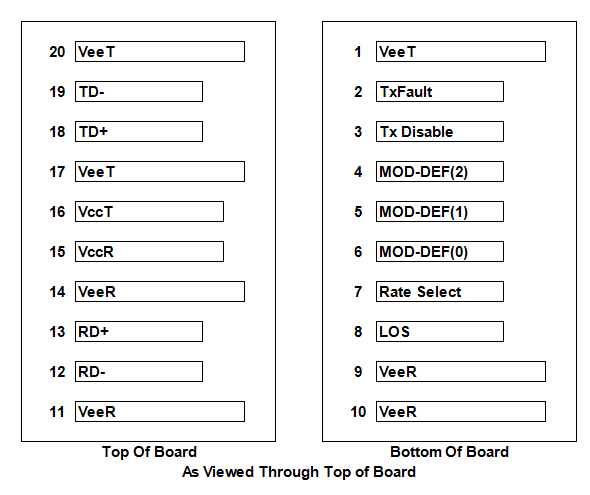

    PIN Definition
