    6G SDI SMPTE SFP RX1310nm RX1490nm PIN 10km SMF BIDI LC Dual Receivers Module Non-MSA

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-B3460-10DCRR
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    6G SDI SMPTE SFP RX1310nm RX1490nm PIN 10km SMF BIDI LC Dual Receivers Module Non-MSA

    6G SDI SMPTE SFP RX1310nm RX1490nm PIN 10km SMF BIDI LC Dual Receivers Module Non-MSA


    Functional Specification


    Item Name6G SDI SMPTE SFP Dual ReceiversP/NGTS-B3460-10DCRR
    Module TypeDual RX in BOSA, 1 fiberBandwidth (Gbps)0.143Gbps - 5.94Gbps
    Form FactorSFP BIDIEnvironmentOperating -5 to 70°C
    WavelengthRX1_1310nm/RX2_1490nmReach10km @ 9/125μm SMF
    Connector TypeLC SimplexCable TypeG.652 SMF
    Transmitter PartN/AReceiver TypePIN photo-detector
    Power Supply Voltage3.3VSupply Current (Max)500mA
    Receiver Sensitivity<-15dBmInput Saturation Power> 0dBm
    Diagnostic (DDM/DOM)SupportPin AssignmentNon-MSA Pinout
    Unit Weight0.025kgWarranty Limited Time36-Month
    ApplicationSD/HD/3G/6G SDI

    Description


    The GTS-B3460-10DCRR is a 1-fibre Bi-Directional dual channel receiver module designed to receive optical serial digital signals as defined in SMPTE 297-2006. It supports the data rates from 143Mb/s to 5.94Gb/s.This dual receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M,SMPTE 424M and ST-2081 serial rates.

    It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 1310 nm and 1490 nm PIN photo detector. A maximum distance of 10 km is achievable with 6Gb/s pathological signals.


    Features


    • Up to 6Gbps data rate
    • Support transmission of SMPTE ST-2081, SMPTE 424M, SMPTE 292M, SMPTE259M
    • Support Video Patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI
    • Dual receivers:1310 nm and 1490 nm PIN photo detector
    • Bi-Directional LC receptacle optical interface compliant
    • Single +3.3V power supply
    • DDMI function available with internally calibrated mode
    • Hot-pluggable
    • International Class1 laser safety certified
    • Operating temperature range: Commercial: -5°C~70°C
    • RoHS Compliant

    Application


    • SMPTE ST-297-2015, ST-2081 and Compatible Electrical-to-Optical Interfaces
    • UHD-TV/HD-TV/SD-TV Service Interfaces
    • Video Optical Transmission
    • Other Optical Communications

    Standard


    • Compliant with MSA SFP+ specification(SFF-8431)
    • Compliant with SFF-8472

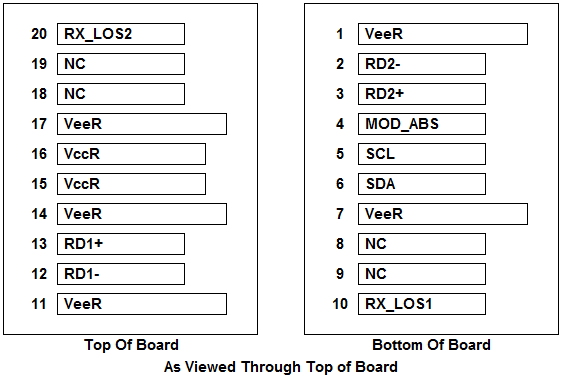

    Pin Definition



    Pin NoSymbolName/DescriptionPower Seq.Notes
    1VeeRReceiver Ground1st
    2RD2-

    Receiver(1310nm) Inverted DATA out.

    AC Coupled. CML-O

    3rd
    3RD2+

    Receiver(1310nm) Non-inverted DATA out.

    AC Coupled. CML-O

    3rd
    4MOD_ABSModule Absent, Connect to VeeR in Module3rd1
    5SCL2-Wire Serial Interface Clock Line, LVTTL-I3rd2
    6SDA2-Wire Serial Interface Data Line, LVTTL-I/O3rd2
    7VeeRReceiver Ground3rd
    8NCNot Connected3rd
    9NCNot Connected3rd
    10RX_LOS1

    Receiver(1490nm) Loss of Signal indication, LVTTL-O

    High: loss of signal

    Low: signal detected

    1st3
    11VeeRReceiver Ground1st
    12RD1-

    Receiver(1490nm) Inverted DATA out.

    AC Coupled. CML-O

    3rd
    13RD1+

    Receiver(1490nm) Non-inverted DATA out.

    AC Coupled. CML-O

    3rd
    14VeeRReceiver Ground1st
    15VccRReceiver Power Supply2nd
    16VccRReceiver Power Supply2nd
    17VeeRReceiver Ground1st
    18NCNot Connected3rd
    19NCNot Connected3rd
    20RX_LOS2

    Receiver(1310nm) Loss of Signal indication, LVTTL-O

    High: loss of signal

    Low: signal detected

    1st4

    Power Seq.: Pin engagement sequence during hot plugging.

    Note 1. MOD_ABS is connected to VeeT inside the module.

    Note 2. SDA&SCL (I2C) shall be pulled up with 4.7k - 10kΩ resistors on host board.

    Note 3. RX_LOS1 shall be pulled up with 4.7k - 10kΩ resistors on host board.

    Note 4. T RX_LOS2 shall be pulled up with 4.7k - 10kΩ resistors on host board.

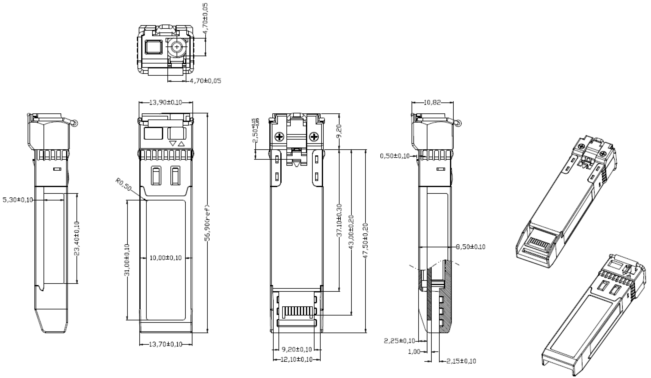

    Package Outline


    Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
