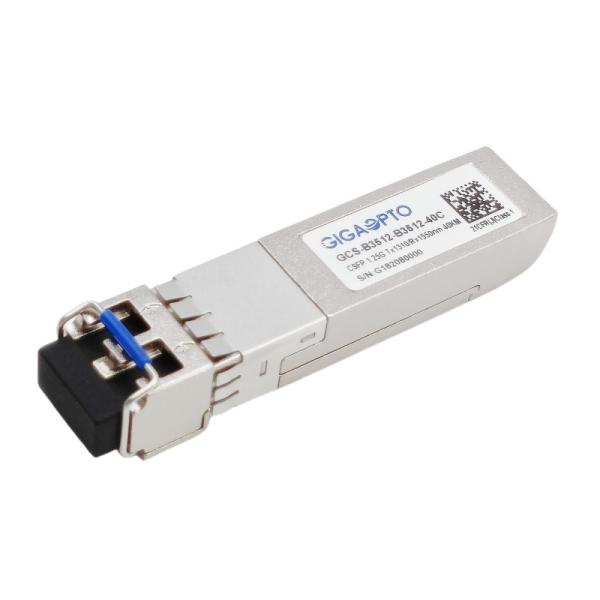

2 Fiber 1.244Gbps Compact SFP BIDI 1310nm/1550nm SMF 40km LC DOM

Description

This 1000Base 2-channel CSFP BIDI Transceivers are high performance, cost effective modules supporting 1.244Gbps and 40km transmission distance with SMF.It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the MSA SFF-8472.

The transceiver consists of 2-channel Bi-directional Optical Transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, type of laser (the DFB laser) and the PIN photo-detector.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access. Conventional SFP will function when plugged into a C-SFP socket, at the same time no damage to C-SFP and host board if C-SFP module is plugged into a conventional SFP socket

The compact SFP (CSFP) transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and SFF-8472.

Specifications

Features

• 2-Fiber Bi-Directional CSFP Optical Transceiver
• Up to 1.244Gbps Bi-directional Data Links
• Compliant with CSFP MSA 2.0 (Option2)
• IEEE802.3ah 100BASE-BX, 1000BASE-BX, SONET OC-3 / SDH STM-1, Compliant
• Compliant with Digital Diagnostic Monitor Interface SFF-8472
• Duplex LC Connector
• 1310nm DFB laser and 1490nm PIN photodiode
• Up to 40km on 9/125µm SMF
• AC/AC Coupling according to MSA
• Single +3.3 V Power Supply
• RoHS Compliant
• Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

• SONET/SDH Equipment Interconnect
• Fast Ethernet
• Switch to Switch interface
• Point to Point FTTH Application
• Other optical transmission systems

Optical and Electrical Characteristics

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 223-1 test pattern @1244Mbps, BER ≤1×10-12.

4. Internally AC-coupled.
