    3G Video Single Receiver 1310nm 10km Video Pathological Patterns Module LC DDM Non MSA Pinout

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-LXX30-10DCRN
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50,000pcs/Month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    3G Video Single Receiver 1310nm 10km Video Pathological Patterns Module LC DDM Non MSA Pinout

    3G-SDI Single-Receiver Module for SD/HD/3G SDI 1310nm 10km LC DDM Non MSA Pinout


    Functional Specification


    Product Name3G-SDI Single ReceiverBandwidth50Mbps - 3Gbps
    Form Factor1-port ReceiverPin AssignmentNon MSA
    Video Pathological Patterns SupportYesTemperature Range0 to 70°C
    Wavelength1310nm-RXFiber Reach10km
    Optical ConnectorLCMediaSMF
    Transmitter TypeN/AReceiver TypePIN
    Power Supply Voltage3.3VSupply Current150mA
    ProtocolsSFP MSARX Saturation> 0dBm
    Rx Sensitivity ( PRBS )SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm
    Rx Sensitivity(Pathological)SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm
    DDMWithWarranty Time36 months
    OEM/ODMSupportedMTBF1,000,000Hours
    ApplicationSD/HD/3G SDI

    Description


    Gigaopto’s GTS-LXX30-10DCRN 3G Video SFP Single receiver Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s. This receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

    The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.


    Features


    • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
    • SMPTE 297-2006 Compatible
    • Robust error free transmission of signals from 50Mb/s to 2.97Gb/s & up to 10km SMF
    • 1310nm Pin Photodetector
    • Non MSA Pinout
    • Metal enclosure for Lower EMI
    • Digital Diagnostic functions available through the I2C interface
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard : 0 to +70°C

    Application


    • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
    • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
    • Remote digital display or security surveillance systems
    • Professional video broadcast
    • Digital cinema system

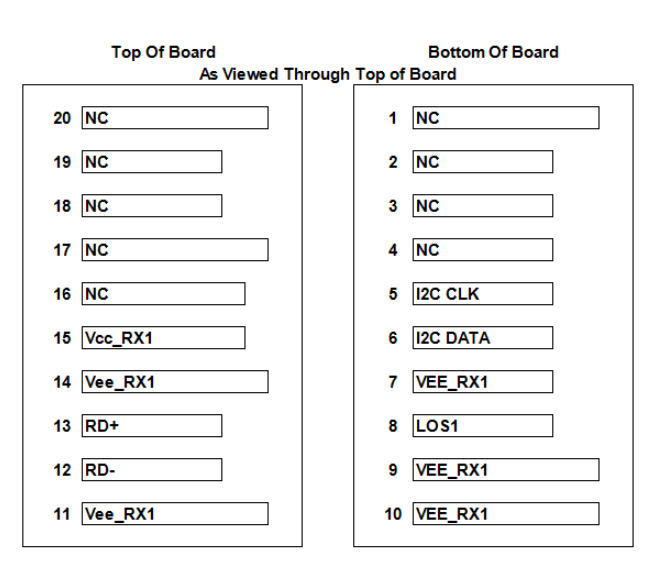

    PIN Definition
