    SFP+ 10G ELR Single Mode Fiber SMF 20km Optical Transceiver Module 1310nm LC DDM

    SFP+ 10G eLR 20km SMF Transceiver Module LC DOM


    Description

    The 10G eLR transceiver module is designed for use in 10 Gigabit Ethernet links up to 20km over dual strand single mode fiber (SMF) with an LC duplex connector. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae.

    The 10G eLR SFP+ transceiver consists of two sections: the transmitter section uses a 1310nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825, the receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

    Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.

    Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for 10 Gigabit Ethernet (10GbE) Switches,Routers,Network Interface Cards (NICs) and Media Converters,etc.

    Each transceiver is 100% optically inspected and tested before shipping.



    Specification


    PackagingSFP PlusData Rate10G
    Center Wavelength1310nmMax Reach20km
    Connector TypeDual-LCFiber TypeSMF
    LD TypeDFB LaserReceiver TypePIN
    TX Power-6 ~ +1dBmRX Sensitivity<-14.4dBm
    Power-budget8.4dBExtinction Ratio>3.5dB
    Power Consumption≤1.0WRX Overload>0.5dBm
    DOM SupportSupportedTemperature RangeCom.
    OEM/ODMSupportedWarranty36 months
    ProtocolsIEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI



    Features

    • Up to 11.3Gbps data rate
    • 1310nm DFB Laser and PIN photo detector
    • Duplex LC receptacle optical interface compliant
    • Single +3.3V power supply
    • Distance up to 20km transmission on SMF
    • DDMI function available with internally calibrated mode
    • Hot-pluggable SFP+ footprint
    • Receiver loss of signal output
    • Transmitter disable input
    • International Class1 laser safety certified
    • Operating temperature range: Commercial: -5°C~70°C / Industrial: -40°C~85°C
    • RoHS compliant and lead-free

    Application


    • 10GBASE-LR/10GBASE-LW Ethernet
    • 10G Fiber Channel
    • 10GE Data Center Switches and Routers
    • 10GE Network interface cards and Fiber Media Converters

    Standards


    • Compliant with SFP+ MSA
    • Compliant with SFF-8472
    • Compliant with IEEE802.3ae
    • 10GFC

    Electrical and Optical Characteristics


    Electrical Characteristics
    ParameterSymbolMinTypicalMaxUnitNotes
    Total Supply CurrentICC300mA
    Transmitter
    Transmitter Differential Input Voltage1801200mV
    Tx_Fault Output Voltage - HighVOH2.4VccVLVTTL
    Tx_Fault Output Voltage - LowVOL00.4VLVTTL
    Tx_Disable Input Voltage - HighVIH2VccVLVTTL
    Tx_Disable Input Voltage - LowVIL00.8VLVTTL
    Input Differential Impedance90100110Ω
    Receiver
    Receiver Differential Output Voltage300850mV
    Electrical Characteristics
    ParameterSymbolMinTypicalMaxUnitNotes
    LOS Output Voltage - HighVOH2.4VccVLVTTL
    LOS Output Voltage - LowVOL00.4VLVTTL
    Output Differential Impedance90100110Ω

    Optical Transmitter Characteristics
    ParameterSymbolMinTypicalMaxUnitNotes
    Average Output PowerPOUT-6+1dBm
    Center Wavelengthλc129013101330nm
    Spectral Width(-20dB)∆λ1nm
    Side Mode Suppression RatioSMSR30dB
    Extinction RatioER3.5dB
    Relative Intensity NoiseRIN-128dB/Hz
    Optical Rise/Fall TimeTR/TF2850ps
    Transmitter and Dispersion PenaltyTDP3.2dB
    Transmitter OFF PowerPOFF-45dBm
    Output Eye DiagramComplies with IEEE802.3ae
    Optical Receiver Characteristics
    ParameterSymbolMinTypicalMaxUnitNotes
    Center Wavelengthλc12601610nm
    Receiver SensitivityPSEN-14.4dBm1
    Input Saturation Power (Overload)PSAT0.5dBm
    Receiver Reflectance-12dB
    LOS De-assert LevelLOSD-17dBm
    LOS Assert LevelLOSA-30dBm
    LOS hysteresisHYS0.56dB

    Note 1. Measured with PRBS231-1 pattern, @10.3125Gbps, ER=4dB, BER=1x10-12.

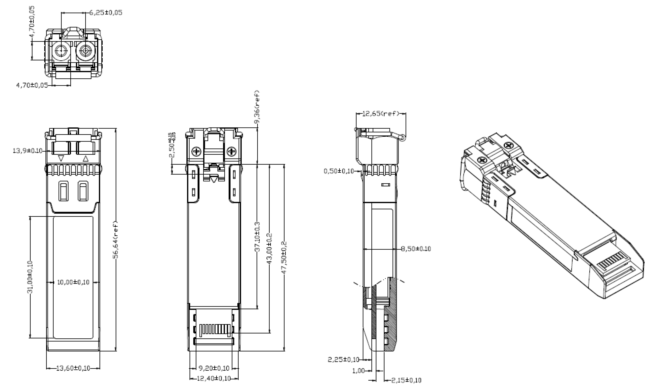

    Package Outline

    Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
