    1.25G SFP 1310nm 20km 1000BASE-LX/LH SMF Module Duplex LC DOM Transceiver

    Cisco Compatible 1000BASE-LX/LH 1.25G 1310nm 20km SMF DOM Duplex LC SFP Optical Module


    Description


    The GIGAOPTO's GTS-L1312-20DC is a high performance, cost-effective transceiver supporting data-rate of 1.25Gbps and 20km transmission distance with SMF. It is a small form factor pluggable module, a hot-swappable input/output device for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-LX and Fiber Channel 1x SM-LC-L FC-PI. The SFP module can be used and interchanged on a wide variety of switches and routers. This SFP series is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA).


    Specification


    Compatible BrandCISCOCompatible PNGLC-LH-SM-20
    Form TypeSFPData Rate (Gbps)1.25Gbps
    Optical ConnectorDuplex LCMax Supported Link Length20km
    DOMYESFibre TypeSingle Mode Fiber
    Warranty3 yearsOperating Temperature

    Commercial

    0 to 70°C (32 to 158°F)

    Wavelength1310nmPower Supply Voltage3.3V
    Power Consumption1WTotal Current<300mA
    Laser TypeFP 1310nmReceiver TypePIN
    Average Output Power-9.5 to -3dBmReceiver Sensitivity< -20dBm
    Extinction Ratio>9dBReceiver Overload>-3dBm
    ProtocolsSFF-8472 MSA Compliant, IEEE 802.3ah-2004, IEEE 802.3z

    Features


    • Up to 1.25Gb/s bi-directional data links
    • 1310nm FP laser and PIN photo detector
    • 20km with 9/125 µm SMF
    • Duplex LC receptacle optical interface compliant
    • Single +3.3V power supply
    • DDMI function available with internally calibrated mode

    • Receiver loss of signal output

    • Transmitter disable input

    • Metal enclosure, for lower EMI
    • International Class1 laser safety certified
    • Operating temperature range:

    Commercial: 0°C~70°C

    Industrial: -40°C~85°C

    • RoHS6 Compliant

    Application


    • Gigabit Ethernet Switches and Routers
    • 1.25Gbps Optical systems
    • 1.063Gbps Fiber Channel
    • Ethernet/SDH/OTN SONET

    Compatibility


    Gigaopto's optical transceivers are 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
    For this (1000BASE-LX/LH SFP 1310nm 20km) compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.


    Compatible BrandCompatible Part NumberCompatible BrandCompatible Part Number
    GIGAOPTOGTS-L1312-20DCH3CSFP-GE-LX-SM1310-20
    CISCOGLC-LH-SM-20Alcatel-Lucent1AB187280029
    JuniperSFP-1GE-LX-20BrocadeE1MG-LX-20
    AristaSFP-1G-LX-20

    Ordering Information


    Part NumberPackageData RateWavelengthReachFiber TypeInterface
    GTS-L0812-02DC1000BASE-SX SFP1250M850nm

    550m@OM2

    275m@OM1

    220m@FDDI

    Multi ModeLC
    GTS-L1312-M2DC1000BASE-SX SFP1250M1310nm2kmMulti ModeLC
    GTS-L1312-10DC1000BASE-LX SFP1250M1310nm10kmSingle ModeLC
    GTS-L1312-20DC100BASE-LH SFP1250M1310nm20kmSingle ModeLC
    GTS-L1512-40DC1000BASE-EX SFP1250M1550nm40kmSingle ModeLC
    GTS-L1312-40DC1000BASE-EX SFP1250M1310nm40kmSingle ModeLC
    GTS-L1512-80DC1000BASE-ZX SFP1250M1550nm80kmSingle ModeLC
    GTS-L1512-A0DC1000BASE-EZX SFP1250M1550nm100kmSingle ModeLC
    GTS-L1512-C0DC1000BASE-EZX SFP1250M1550nm120kmSingle ModeLC
    GTS-L1512-F0DC1000BASE-EZX SFP1250M1550nm160kmSingle ModeLC

    Pin Definition

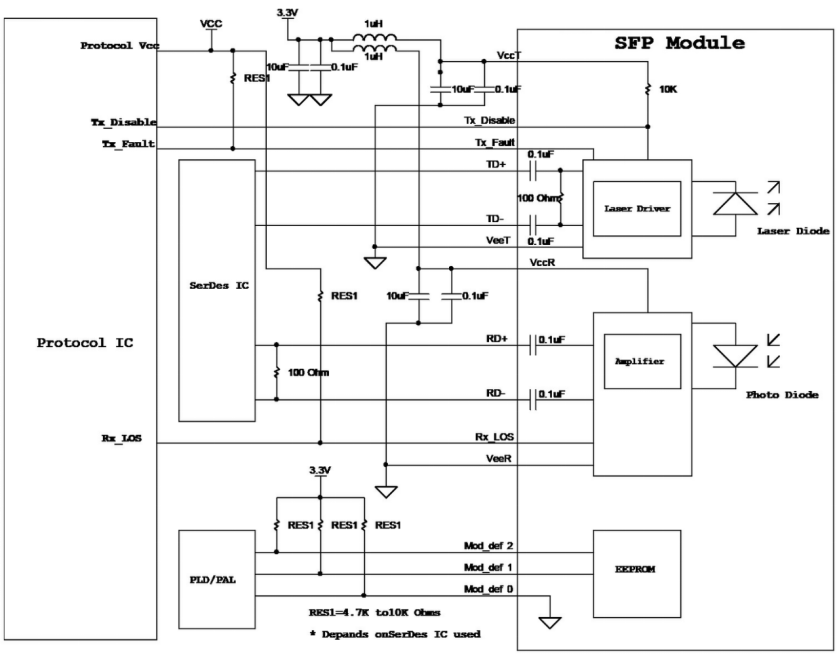

    Typical Application Circuit

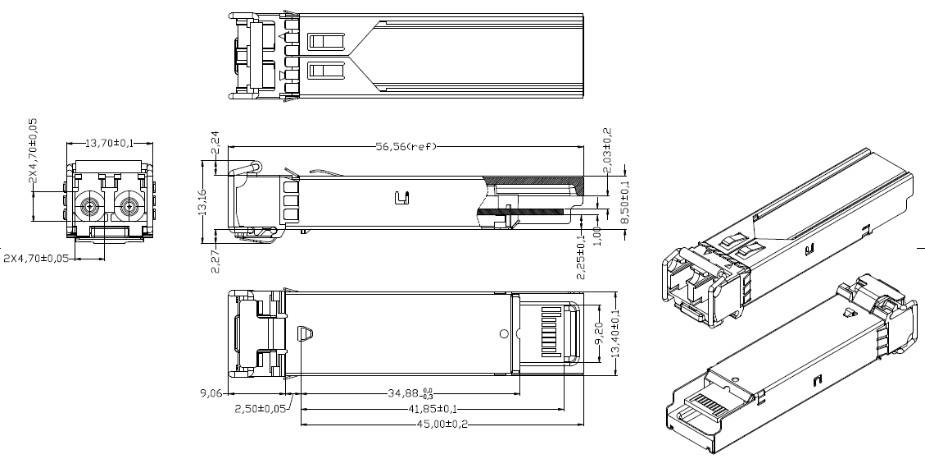

    Package Outline

    Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
