    1.25G SFP Industrial Transceiver 1000BASE-SX 850nm 550m Duplex LC MMF DOM Module

    Ask Lasest Price
    Brand Name : GIGAOPTO
    Model Number : GTS-L0812-02DI
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000pcs / month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    1.25G SFP Industrial Transceiver 1000BASE-SX 850nm 550m Duplex LC MMF DOM Module

    Cisco Compatible 1000BASE-SX SFP 1.25Gbps Transceiver Module Industrial 850nm 550m MMF Multi-Mode DOM Duplex LC


    Description


    The GIGAOPTO's GTS-L0812-02DI 1000BASE-SX SFP transceiver is a high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. The Industrial SFP transceiver is suitable for short reach Gigabit Ethernet and 1G fiber channel application in harsh environments. The full-duplex SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 1Gbps data rate.


    The 1000BASE-SX SFP transceivers are compatible with the IEEE 802.3z 1000BASE-SX standard, and comply with Multi-Source Agreement (MSA) and SFF-8472 specification.


    Specification


    Compatible BrandCISCOCompatible PNGLC-SX-MM-RGD
    Product PackagingSFPData Transfer Rate1.063~1.25Gbps
    Optical Receptacle TypeDual LCCable Length550m (1,804 ft) over OM2
    Digital Diagnostic MonitoringYesFiber ModeMulti-Mode Fiber (MMF)
    Power Budget7.5dBOperating Case Temperature

    Industrial

    -40 to 85°C (-40 to 185°F)

    Center Wavelength850nmSupply Voltage3.30V
    Power Consumption<1WIcc300mA
    Transmitter TypeVCSEL 850nmReceiver TypePIN photodiode
    Output Average Power-9.5 ~ - 3dBmRX Sensitivity< -18dBm
    Extinction Ratio(ER)>9dBSaturation Power>-3dBm
    ProtocolsIEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant

    Features


    • Data-rate of 1.25Gbps/1.063Gbps operation
    • 850nm VCSEL laser and PIN photodetector for 550m transmission
    • Duplex LC receptacle optical interface compliant
    • +3.3V single power supply and TTL Logic Interface
    • Supports Digital Optical Monitoring (DOM) capability
    • Hot-pluggable SFP footprint
    • Low power dissipation
    • Metal enclosure provides lower EMI
    • Class 1 FDA and IEC60825-1 Laser Safety Compliant
    • Ambient temperature range -40°C~85°C (-40 to 185°F) for industrial application
    • Compliant with RoHS6 and lead free
    • Compliant with SFP MSA (INF-8074i) and SFF-8472

    Application


    • Industrial Ethernet Switches
    • Industrial Ethernet Routers
    • Industrial Ethernet Media Converters
    • Other Industrial Ethernet Connectivity over Fiber

    Ordering Information


    P/NDescriptionSpeedWavelengthReachConnectorTemp.
    GTS-T0012-10I-A1000BASE-T SFP Copper1.25Gbps/100mRJ-45-40~85℃
    GTS-L0812-02DI1000BASE-SX SFP1.25Gbps850nm550m over OM2Dual LC-40~85℃
    GTS-L1312-10DI1000BASE-LX SFP1.25Gbps1310nm10kmDual LC-40~85℃
    GTS-L1312-40DI1000BASE-EX40 SFP1.25Gbps1310nm40kmDual LC-40~85℃
    GTS-L1512-80DI1000BASE-ZX SFP1.25Gbps1550nm80kmDual LC-40~85℃

    Digital Diagnostic Memory Map

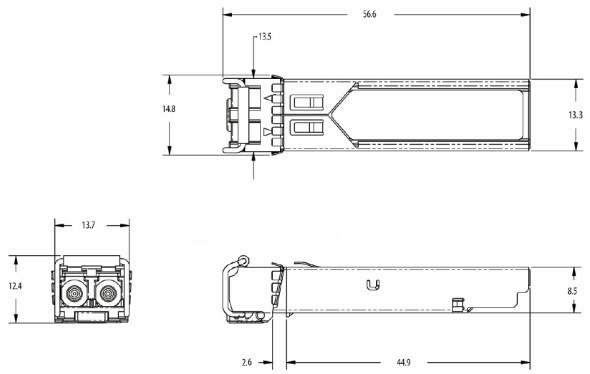

    Mechanical Specifications (Unit: mm)
