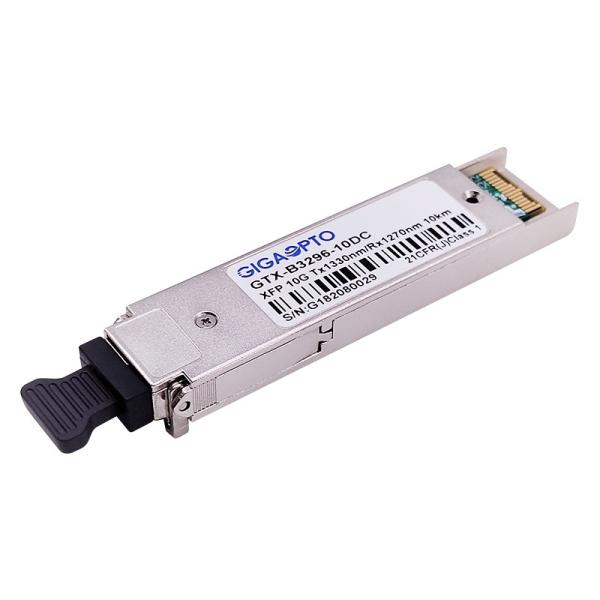

    BIDl 10Gbps XFP Transceiver Module 1330nm / 1270nm 10km LC DOM

    Ask Lasest Price
    Brand Name : OEM, Generic
    Model Number : GTX-B3296-10DC
    Certification : CE,FCC,RoHs, TUV,UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    BIDl 10Gbps XFP Transceiver Module 1330nm / 1270nm 10km LC DOM

    10Gbps XFP BIDl Transceiver Module 1330nm/1270nm 10km LC DOM


    Description


    Gigaopto’s XFP BIDl transceiver is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver. The transmitter section uses a 1330nm DFB, and the receiver section uses a 1270nm PIN photodiode receiver, which provides 10km transmission over single strand single mode fiber (G.652 SMF).

    It supports DDM/DOM optical diagnostics, by providing diagnostic information about the present operating conditions.


    Specification


    Product NameXFP BIDIP/NGTX-B3296-10D
    Form FactorXFPData Rate(Gbps)10Gbps
    Center Wavelength1330nm -TX/1270nm -RXReach10km
    ConnectorSimplex LCMedia TypeSMF
    Transmitter PartDFBReceiver PartPIN photo-detector
    TX Average Power-5 ~ 0dBmRX Sensitivity< -14dBm
    Ext. Ratio> 3.5 dBSaturation Input Power> 0.5 dBm
    Power Dissipation<1.5WOperating Case Temperature0 to 70°C / -40 to 85°C
    Diagnostic (DDM/DOM)Support (default)OEM/ODMSupport

    Features


    • Hot-pluggable XFP BIDI
    • Supports 9.95Gbps to 11.1Gbps bit rates
    • Compliant with IEEE 802.3ae
    • 1330nm DFB transmitter, 1270nm PIN photo-detector
    • Max link up to 10km on G.652 SMF
    • Single LC connector
    • Built-in digital diagnostic functions
    • Single 3.3V power supply
    • No Reference Clock required
    • Very low EMI and excellent ESD protection
    • ROHS-compliant and lead-free

    Applications


    • 10GBASE-LR 10G Ethernet at 10.3125Gbps
    • 10GBASE-LW 10G Ethernet at 9.953Gbps
    • 1200-SM-LL-L 10G Fiber Channel at 10.51875Gbps
