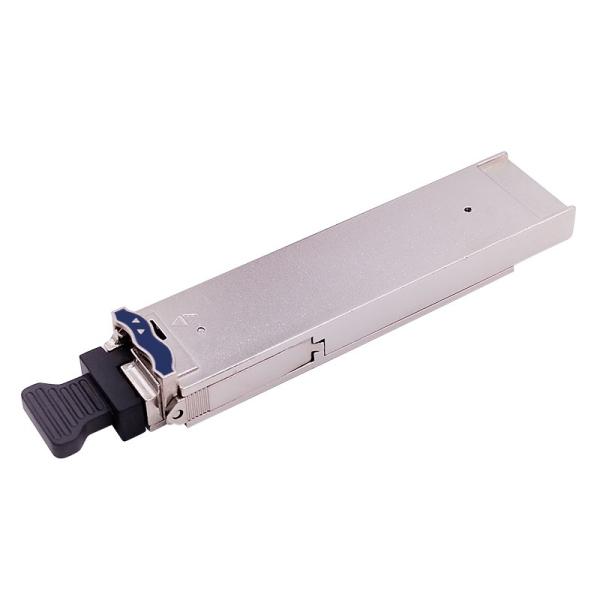

10Gbps BIDI XFP ER60 Fiber Transceiver Module 1270nm/1330nm 60km DOM

Description

The BIDI XFP ER60 is a hot-pluggable WDM XFP transceiver module for Bi-direction optical data communications such as 10 Gigabit Ethernet and 1200-SM-LL-L 10G Fiber Channel. It provides 60km transmission over single-strand single-mode fiber (G.652 SMF).

The BIDI XFP ER60 module consists of two sections: the transmitter section uses a 1270nm DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825, the receiver section uses a 1330nm APD photodiode integrated with a TIA.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Specification

Features

• Hot-pluggable BIDI XFP ER60
• Supports 9.95Gb/s to 11.3Gb/s date rates
• 1270nm DFB transmitter, 1330nm APD receiver
• max link up to 60km on SMF
• Power budget 21dB at least
• LC Connector
• +3.3V power supply only
• Power dissipation <2W
• Built-in digital diagnostic functions
• Case temperature range: Standard: 0~+70℃; Industrial: -40~+85℃
• RoHS compliant and lead-free

Applications

• 10GBASE-ER/10GBASE-EW Ethernet
• 10G Fiber Channel
• 10G Data Center Switches and Routers
• 10G Network interface cards and Fiber Media Converters
